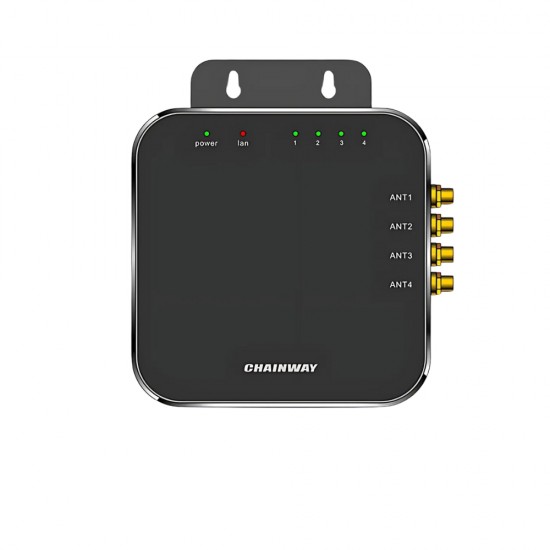

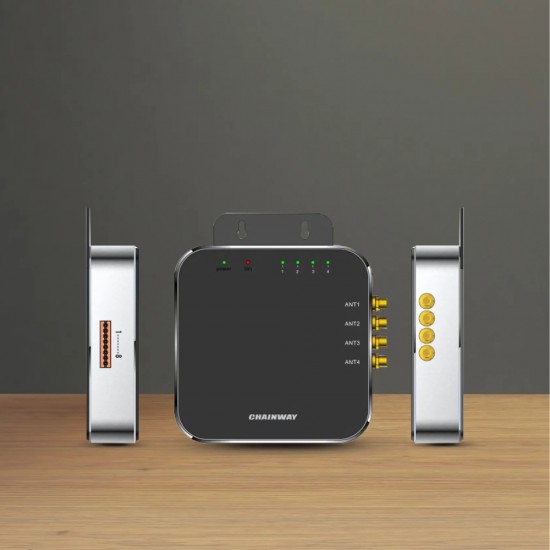

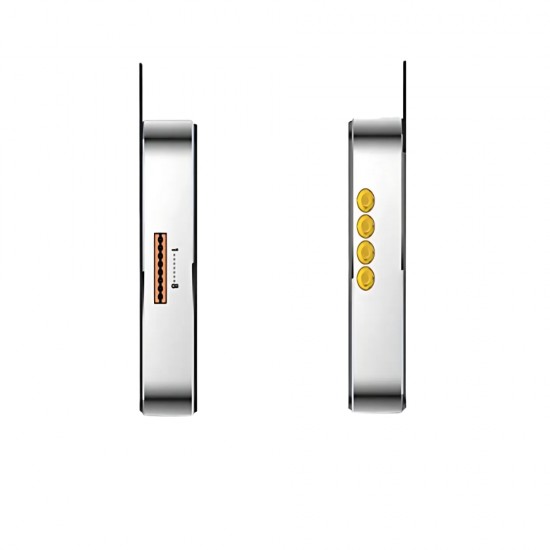

Chainway UR4 Fixed RFID Reader

Chainway UR4 is a high-performance four-channel fixed UHF reader. The core module adopts the Impinj E710 chip, with the high stability, excellent anti-electromagnetic interference capability, and better heat dissipation performance, the device fulfill the requirements for installation in various indoor & outdoor environments in diverse industries with strict RFID application standards such as warehouse management, archives, and library management, bank, clothing, and footwear retail, jewelry monitoring, watch industry, laundry, production line management, medical instrument cabinet, and vending machines.
CHAINWAY CHAINWAY

Specifications

Device
Environment Operating Temperature -25°C to +65° C. Storage Temperature -40°C to +85°C.
Device dimension 102.8×3102.8×28mm/ Weight 329gr

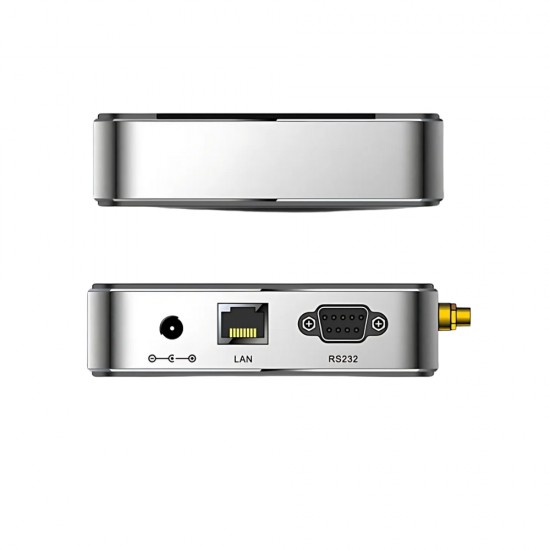

Additional device features SDK Windows, Linux, Android. Input Voltage DC 9V – 12V. Standby Current < 30mA. Work Current 800mA +/-5% @ DC 12V Input. Comm Interface RS-232 / RJ45 Baud Rate 115200 bps. Ethernet interface 10/100 Base-T Ethernet (RJ45). Optional POE (802.3af 13W. Optional POE+ (802.3at 25.5W). Engine CM710-4 module based on Impinj E710. Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C.
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
