RC09 UHF RFID Antenna

RC09 UHF RFID Antenna
RC09 UHF RFID Antenna
RC09 UHF RFID Antenna
RC09 UHF RFID Antenna
RC09 UHF RFID Antenna
RC09 UHF RFID Antenna
RC09 UHF RFID Antenna
RC09 UHF RFID Antenna
RC09 UHF RFID Antenna

Downloads

File Size Download
chainway-ant-rc09-255-rfid-antenna-datasheet.pdf 511.64KB Download

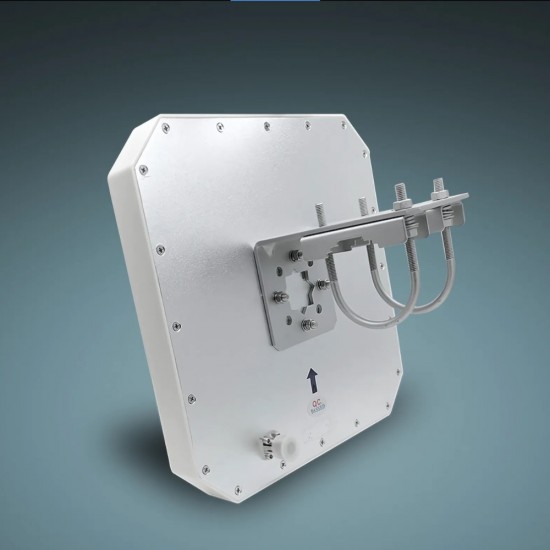

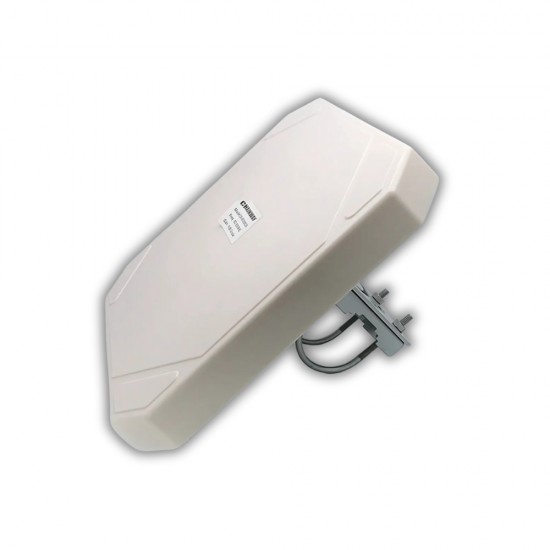

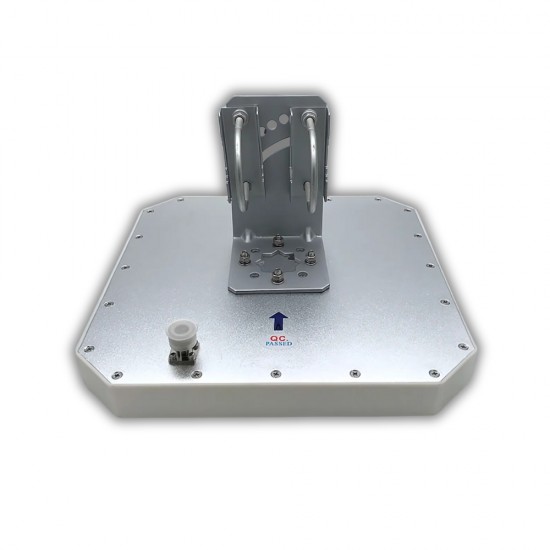

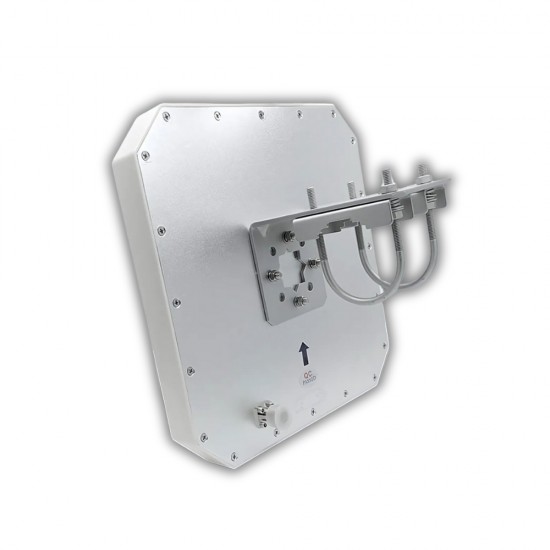

Chainway RC09 UHF RFID Antenna Ant-RC09-255

Environmental Adaptability, Easy Installation. This fast reading/writing speed antenna can support long-distance reading and bulk-tags reading with the assurance of high data security. The device is portable, lightweight and effortless to install, and intermittently has a high IP protection rating. Keeping this in consideration, Ant-RC09-255/255 is an ideal antenna to be deployed in various industries like logistics, warehousing, transportation, retail, medical treatment, electricity power, finance, ticket management, and livestock industry, etc.

Specifications

Device
Environment Operating Temperature -40°C to +60° C. IP67
Device dimension 255×255×30mm/ Weight 1.27gr
Additional device features Polarization Type RHCP. Gain 9dBi. 3dB Beam-Width. H-Plan 60°. 3dB Beam-Width. E-Plan 55°. VSWR ≤1.3. Front to back Ratio ≥17dB. Input Impedance 50Ω. Max Input Power 20W. Lightning Protection DC Grounded. Connector Type N-Type Female. Pole mounted or Wall mounted.
Frequency 902-928MHz / 865-868MHz
