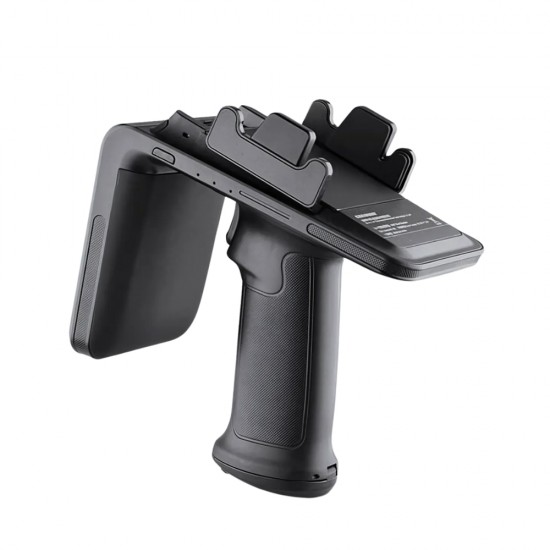

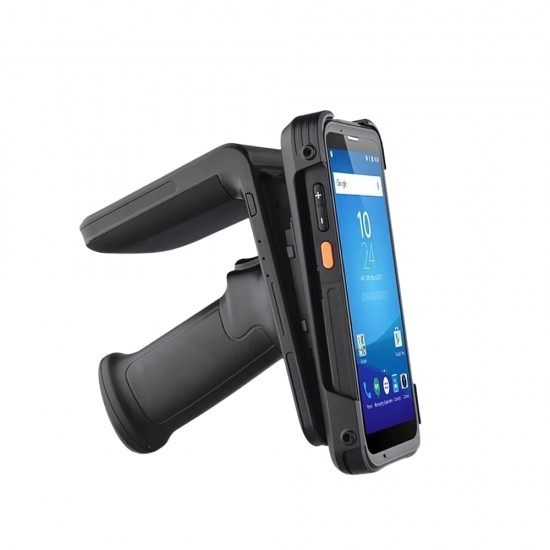

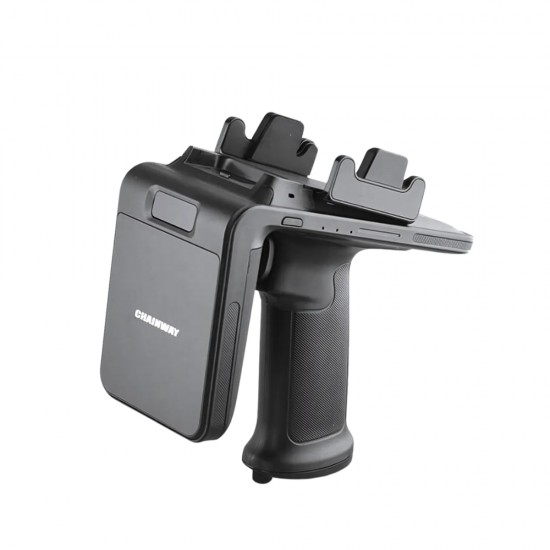

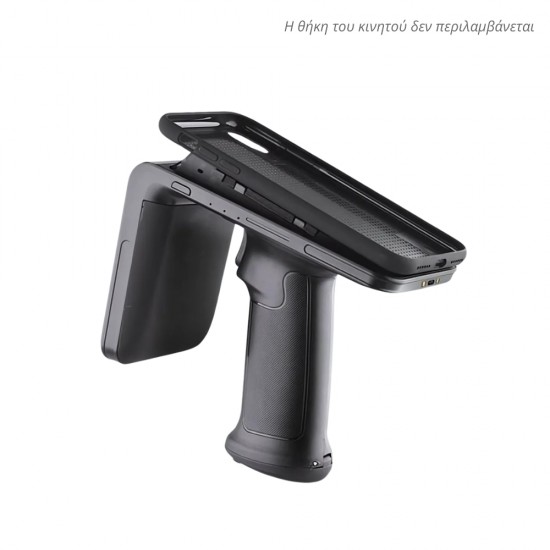

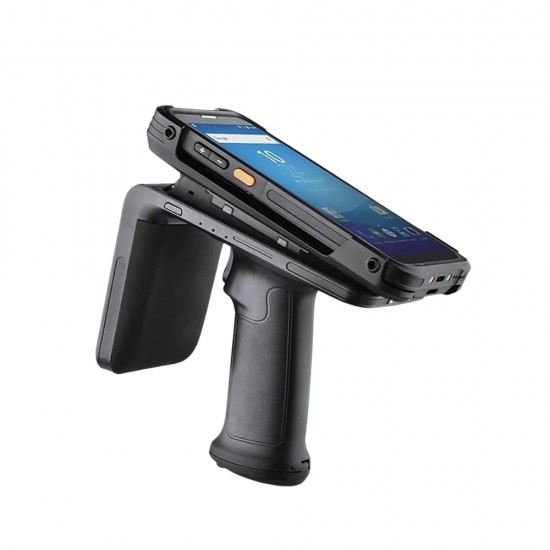

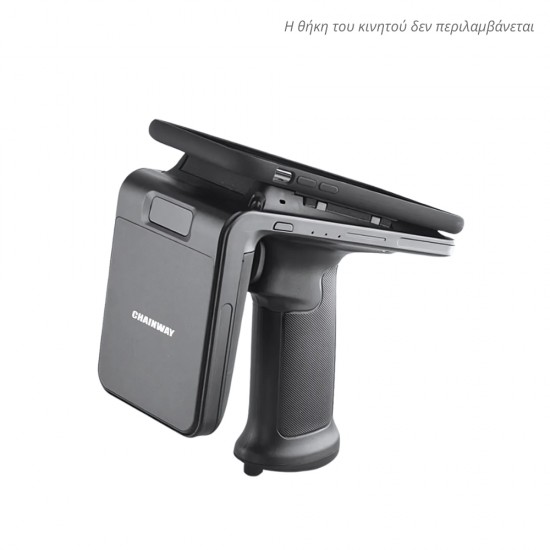

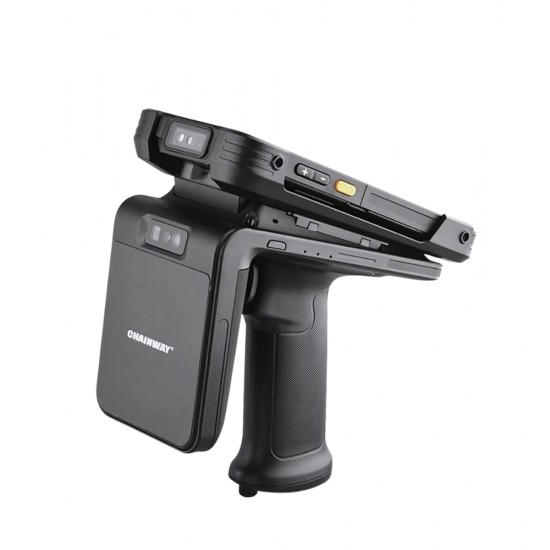

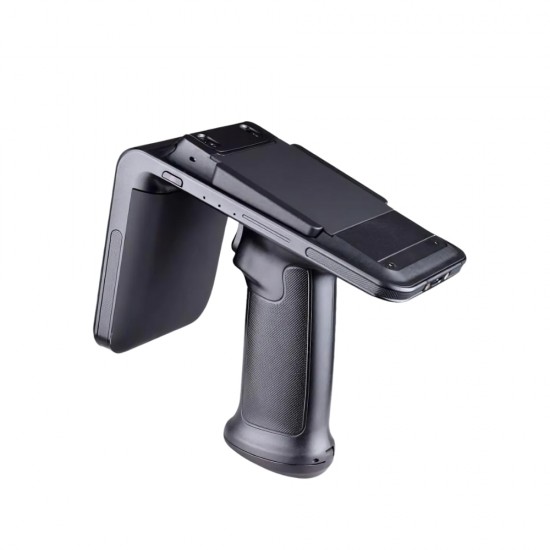

Chainway R6 UHF RFID Sled Reader

Chainway RFID Sled Reader R6 features powerful UHF reading and writing (Impinj R2000 chip), and barcode scanning with high sensitivity. You can attach mobile phone to R6 UHF Sled Reader for a complete one-piece solution. The device can be widely deployed in power patrol inspection, asset tracking, clothing inventory, warehouse management, vehicle management, financial management and so forth.

Specifications

Device
Environment Operating Temperature -20°C to +5° C. Storage Temperature -40°C to +70°C.
Device dimension 143x76x140mm/ Weight 483gr
Additional device features Android / IOS. MCU Cortex-M3 72MHz. Βattery 5200mAh. Standby: over 70 hours (keeping bluetooth connected). Continuous use: up to 6 hours (UHF reading). Charging time: 3-4 hours (with standard adaptor and USB cable)Interface USB3.0 Type-C. Bluetooth 4.0,BLE. Reading rate >200tags/s. R/W range >22m(indoors); >10m(open outdoors, Impinj MR6 tag). Protocol: EPC C1 GEN2 / ISO18000-6C. Power: 1W (30dBm, support +5~+30dBm adjustable). Engine CM2000-1 module based on Impinj Indy R2000. Antenna parameter Circular Polarized Antenna (3dBic). R/W range >22m(indoors)/ >10m(open outdoors, Impinj MR6 tag). Optional 2D Imager Scanner SE2707.
Frequency 920-925MHz/902-928MHz/865-868MHz
