R3 Desktop RFID Reader

R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader
R3 Desktop RFID Reader

Downloads

File Size Download
chainway-r3-desktop-rfid-reader-datasheet.pdf 445.75KB Download
R3 Accessories Guide-EN.pdf 286.86KB Download

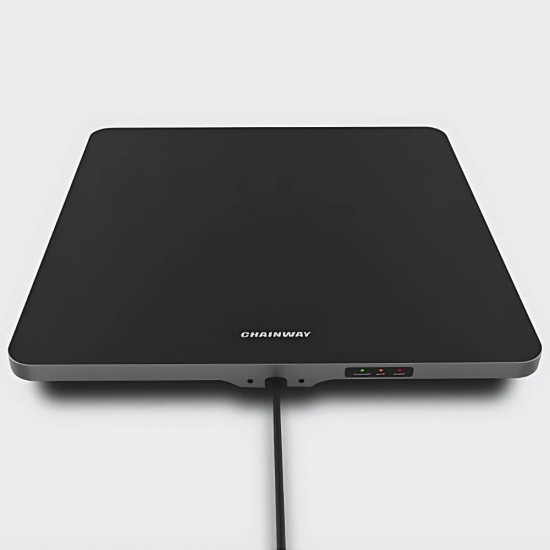

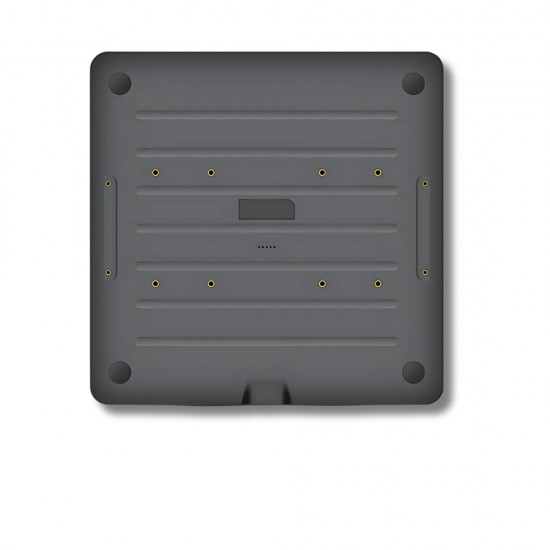

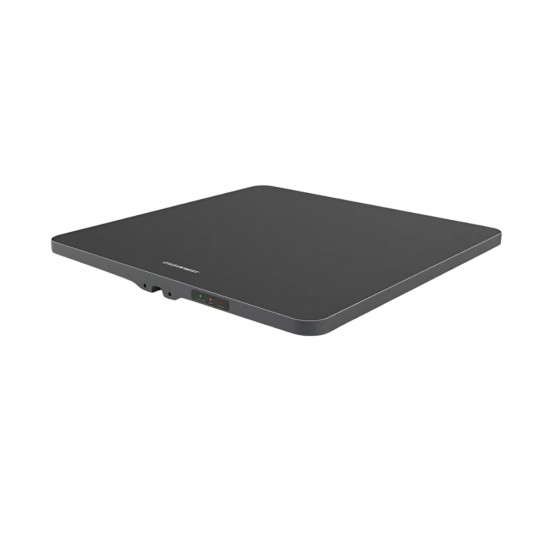

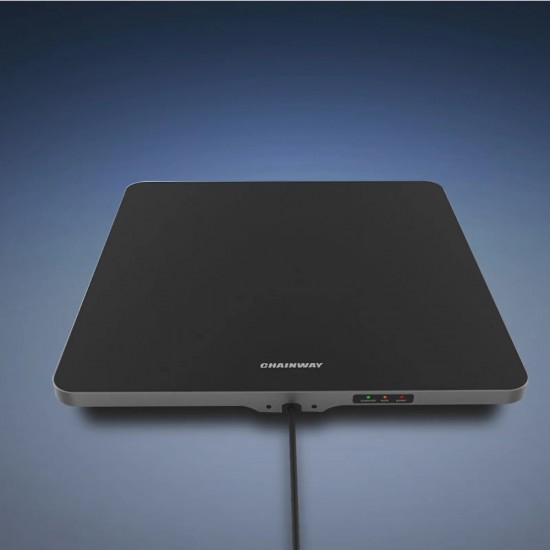

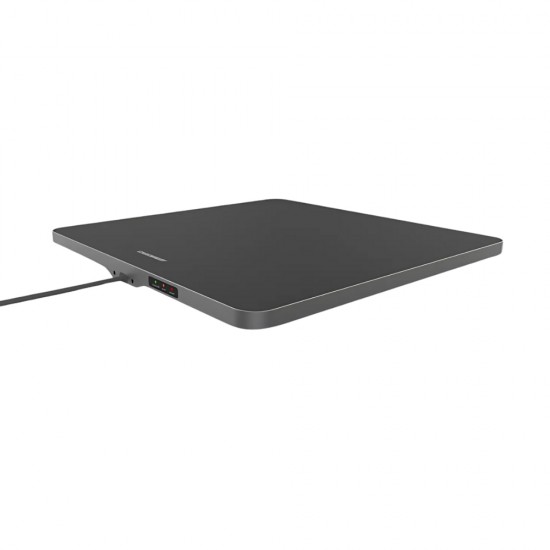

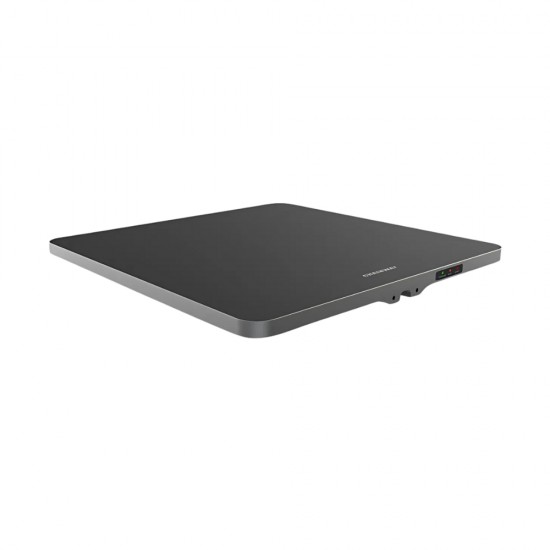

Chainway R3 RFID Desktop UHF Reader

Chainway R3 is a newly-developed desktop UHF reader. It supports Windows/ Android/IOS applications, and enables short read distance within 45cm. Combined with high-efficiency collision processing algorithm, it delivers fast reading and writing of tags and maintains high identification rate as well. And it allows data transmission via Bluetooth, Type C USB. R3 can be deployed in retail collection, logistics, identity verification, smart parking, access control, anti-counterfeiting system, production process control, etc.

Specifications

Device
Environment Operating Temperature -20°C to +5° C. Storage Temperature -40°C to +70°C. IP65
Device dimension 318×318×20mm/ Weight 1.133gr
Additional device features SDK USB, Android /Windows. Bluetooth, Android / IOS. Port USB Type-C. Engine: CM310-4 module based on Impinj E310. CM510-4 module based on Impinj E510. Protocol EPC C1 GEN2 / ISO18000-6C. Output Power 1dBm-30dBm, 1dBm (Stepper). Read Range 0- 50 cm.
Frequency 865-868 / 920-925 / 902-928 MHz ( custom-design for frequency band )
