R2 Bluetooth RFID Reader

Name: R2 Bluetooth RFID Reader
Brand: CHAINWAY
Price: 1.00 EUR
Availability: InStock

R2 Bluetooth RFID Reader

Downloads

File	Size	Download
chainway-r2-bluetooth-rfid-reader-datasheet.pdf	631.96KB	Download

Description

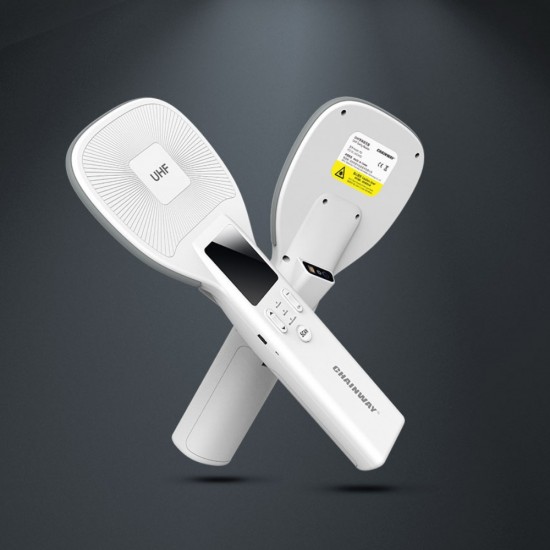

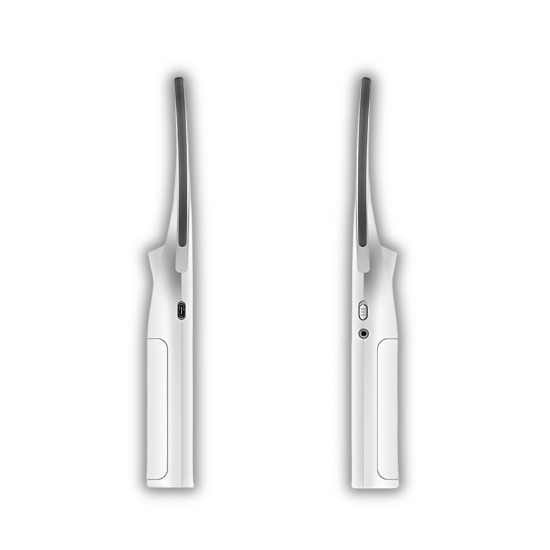

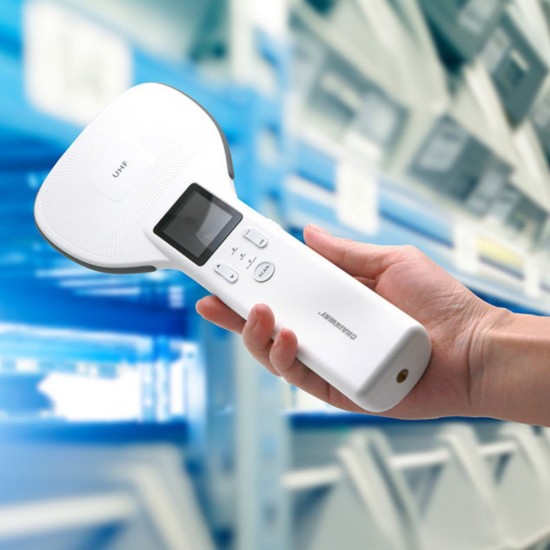

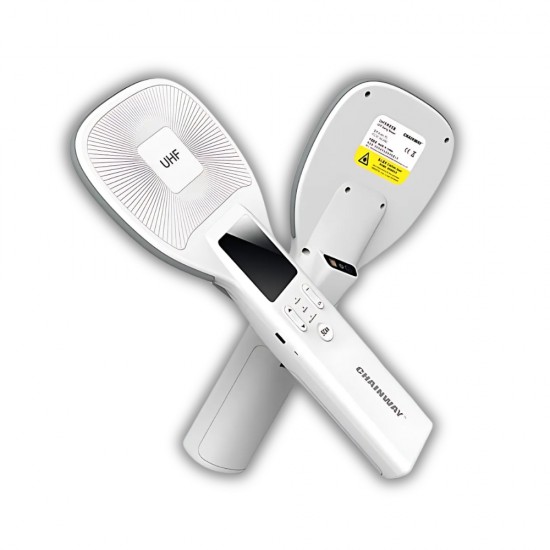

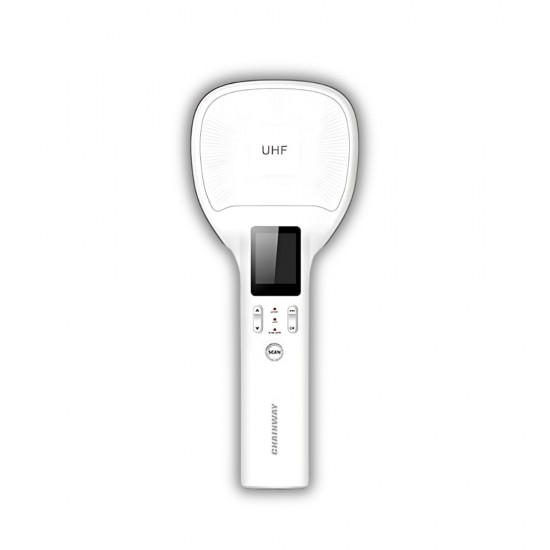

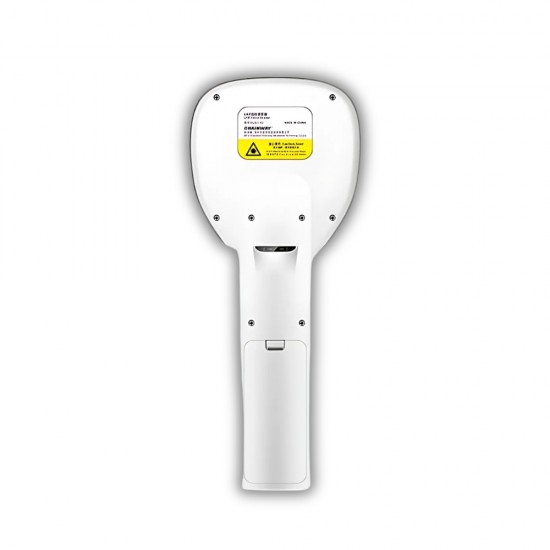

Chainway R2 Bluetooth RFID Reader

Chainway R2 is a handheld bluetooth reader with superior RFID performance. Integrated with Impinj E710, it enables read distance of 31m outdoors, and can store up to 50,000 tags. It supports optional barcode scanning, and allows flexible connectivity with any smart device via Bluetooth for data transmission with ease. The RFID reader can complete tasks in inventory management, asset management, etc.

CHAINWAY

Specifications

Device
Memory of device	50.000 tags
Environment	Operating Temperature -20°C to +5° C. Storage Temperature -40°C to +70°C.
Device dimension	282 x 117.5 x 32mm/ Weight 334 gr (with battery)
Additional device features	Android / IOS. Display 1.77inch, 128 x 160. MCU Cortex-M3 72MHz. Removable battery 5200mAh. PWR button (side), up, down, return, ok, SCAN button (front). Buzzer.Interface Type-C. 2D Imager Scanner SE2707. Engine CM710-1 module based on Impinj E710. Antenna Linear Polarized antenna (4dBi). Read Rate 900+ tags/sec. Standby over 70 hours (keeping bluetooth connected). Continuous use for up to 6 hours (UHF reading). Charging time for 3-4 hours (with standard adaptor and USB cable).
Frequency	920-925MHz/902-928MHz/865-868MHz
