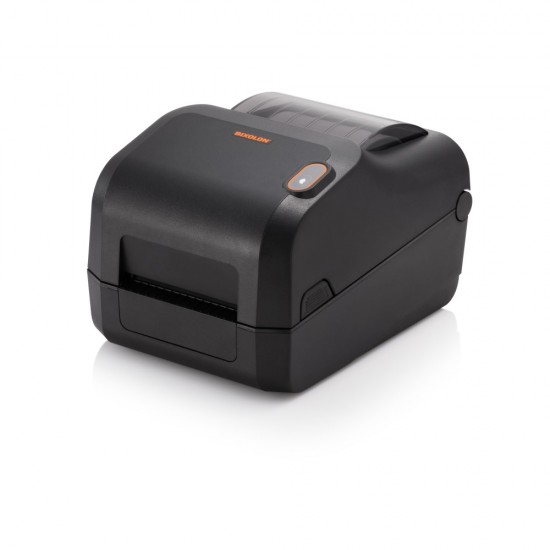

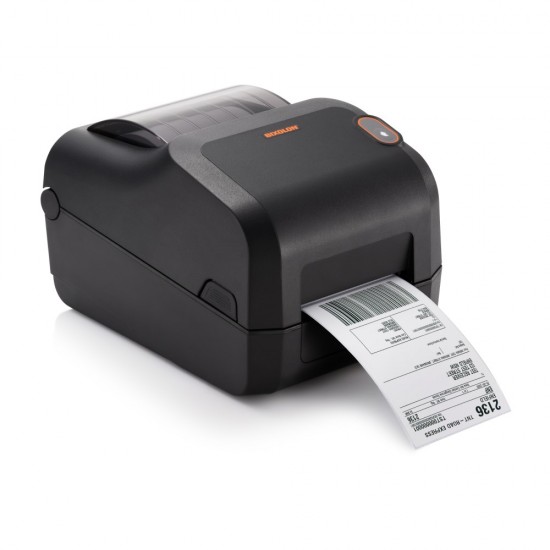

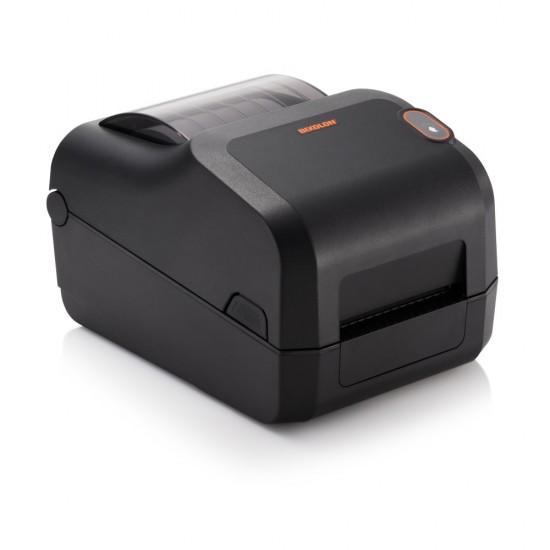

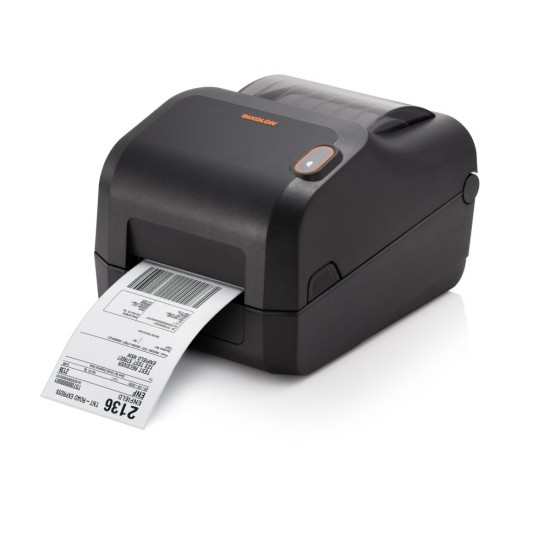

XD3-40t Barcode Label Printer

XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer
XD3-40t Barcode Label Printer

Downloads

File Size Download
SS_XD3-40Series_EN_JAN25_V1.pdf 94.67KB Download

Barcode Label Printer XD3-40t 4'' USB

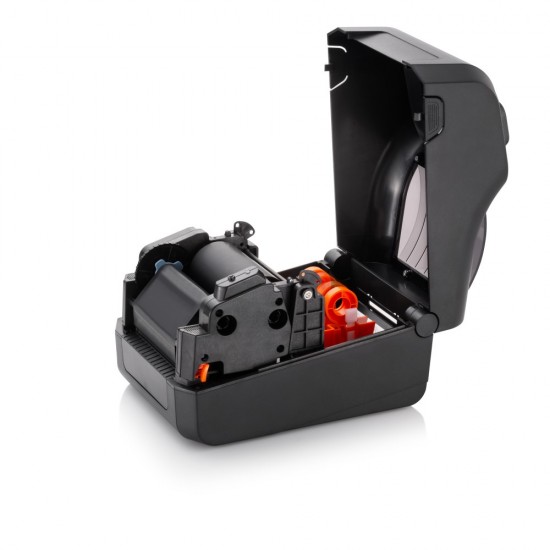

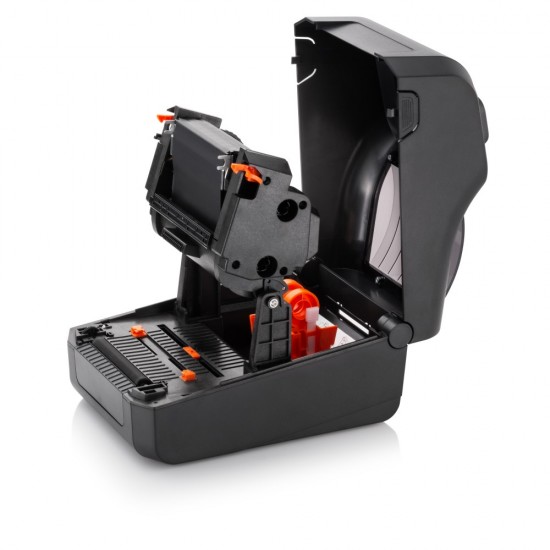

Direct Thermal or Thermal Transfer Desktop Barcode and Label printer featuring a compact design,offers quick data processing and print speeds up to 127mm/sec to produce high quality text, graphics and barcodes to labelling media. Ideal for labelling applications within Manufacturing, Retail, Warehousing and Logistics markets. Supports easy paper loading with adjustable paper guide and plus holder, alongside an optional peeler, plus an external paper supply. For added simplicity, the label printer also offers simple toolless maintenance of the roller and print head. Available with USB interface as standard and optional USB V2.0 + Serial + Ethernet, compatible with  SLCS, BPL-Z (ZPL ll®), BPL-E (EPL), BPL-D (DPL, Optional), while supporting Smart Switch Programming Languages. The XD3 series is also accompanied with comprehensive SDKs for Windows and Linux, alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®. While backed by a 2 year warranty as standard.


Specifications

Barcode Printers
Printing technology Thermal Transfer or Direct Thermal
Printing Speed 127 mm/sec
Printing Width 104 mm
Printing Resolution 203 dpi
Memory 64 MB SDRAM, 128 MB Flash

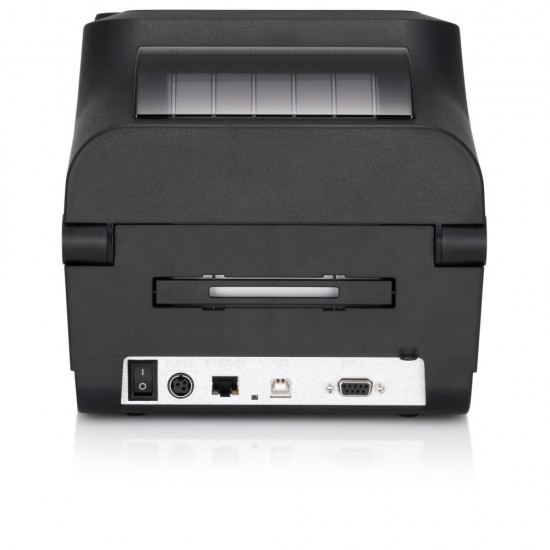

Interfaces printers Standard: USB. Optional: USB + Serial + Ethernet
Additional features Media Width 15 -118mm. Transmissive(Fixed), Reflective(Adjustable), Head Open, Ribbon-End sensor. Emulation SLCS, BPL-Z (ZPL ll®), BPL-E (EPL), BPL-D (DPL, Optional). Operating Temperature : 5-40℃. Storage: -20-60℃. Optional Peeler. Dimensions 210 x 284 x 186 mm. Weight 2.6kg
