AUTOID 9 Mobile Computer

Downloads

File	Size	Download
BROCHURE AUTOID9.pdf	1.42MB	Download
AUTOID9 - specs.pdf	329.32KB	Download

Description

Mobile Computer AUTOID 9

AUTOID9 is in-build of unified software platform, user could control application installation, authorization and remote virus killing, software upgrading, which ensures OS and data security. Advanced capacitive touch and visible display with 4 inch size corning gorier capacity touchable WVGA, supports operation with glove, wet or dry hand with physical keys. There are two keyboard options, barcode scanning solutions supports engines of SE955 and EM1350 1D barcode scanning engine, andN6603,SE4500 and SE4750 2D barcode scanning engine. Stable Android 4.4 & Android 5.1 and high speed processor Cortex™-A53 Quad core 1.2GHz,2.4G/5G dual frequency high speed Wi-Fi, WLAN up to 200Mbps and seamless roaming, 4G, EVDO,TD-SCDMA,WCDMA,TDD-LTE,FDD-LTE network system, which could change cards without changing phones. Stable industrial protection IP67 protection grade, drops from 5ft/1.5m. 12 hours working time with 4000mAh Li-on battery, back up battery would prevent data lose for main battery changing.

ICS

Specifications

Mobile Terminals
Monitor pda	4 ''size industrial grade low temperature resistant, IPS screen, Capacitive, touchable, dual mode touch-with or without a thick glove with or without wet hand. 800(H)×480(W) (WVGA)
Operation System	Android 4.4 & Android 5.1
CPU pda	Cortex™-A53 Quad core 1.2GHz
Memory pda	RAM 2GB LPDDR3/ ROM 16GB
Communication	Industrial Micro USB interface, support USB2.0 high speed; Support OTG; USB supports serial port/ Expansion Slot Micro SD Card, 32GB SDHC compatible.
Barcode scanner	SE955 and EM1350 1D barcode scanning engine, andN6603,SE4500 and SE4750 2D barcode scanning engine
Battery pda	Removable 3.8 V 4000mAh li-ion rechargeable battery; Built in 3.7V 60mAh li-ion backup battery, Internal battery meter. Side interface: standard Micro USB quick charging interface, intelligent identification of PC and special charger. Contact at the bottom of the tail plug interface: support for quick charging and USB data communication, intelligent identification of PC and special charger.
Keyboard	17 key / 22 key crystal button, LED (backlight)TY
Sealing	IP67
Resistance	5 ft./1.5m drops to concrete across the operating temperature range/ Operating Temp: -20℃ -+50℃/ Storage Temp: -40 ℃ - +60 ℃ (Battery included), -40 ℃ to +70 ℃ (Battery excluded)/ Humidity: 5% to 95% RH non-condensing.
Dimensions/ Weight pda	156(H)×70(W)×22(T) mm (27mm at barcode engine)/ 270g (Including battery depends on different configurations)

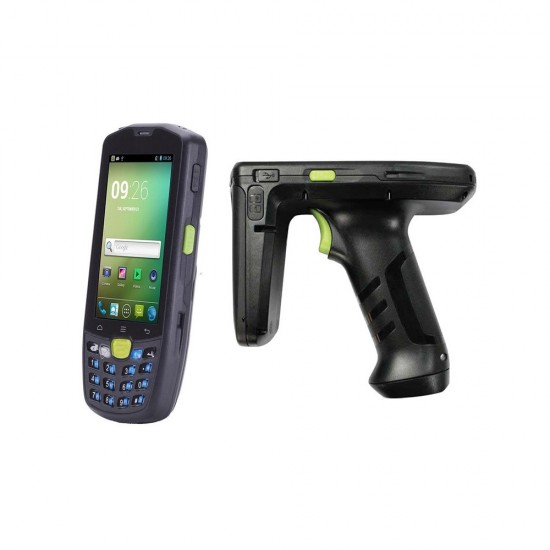

Accessories	Standard Accessories: Universal adapter×1, USB cable×1, Hand Tether×1, Battery ×1, Hand Belt×1/ Optional Accessories: Single-Slot Battery Charger, 4-Slot Battery Charger, Single-Slot Charging Dock, Single-Slot Charging Dock (Support Ethernet), 5-Slot Charging Dock, 5-Slot Charging Dock (Support Ethernet), Pistol grip, Vehicle mounted charging rack, Vehicle charger, OTG cable, Multifunctional bag, knapsack for Pistol Grip, Touch pen, Protective cover, Screen protector
Additional features mobile terminals	Audio:Built-in double speakers8Ω/0.8W×2 (or built-in single speaker 4Ω/2W), built-in microphone, the 3.5 mm stereo headset interface/ ESD:±15kV Air discharge, ±8kV direct discharge/ Sensor (optional) Acceleration sensor, light sensor, electronic compass and gyroscope.
